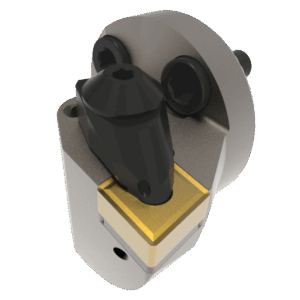

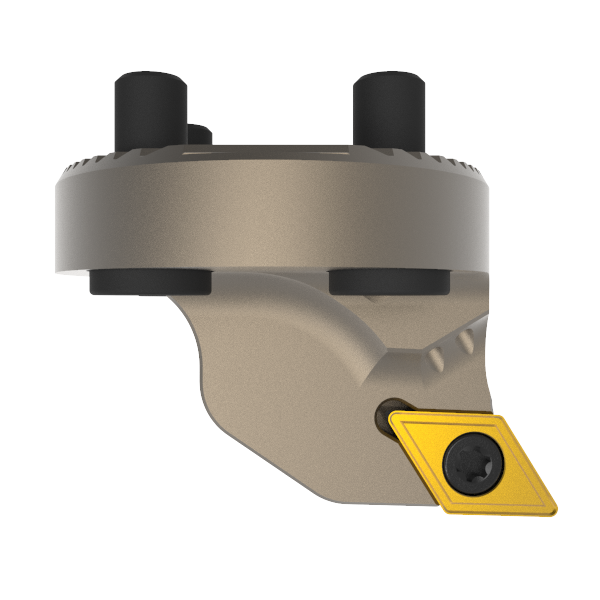

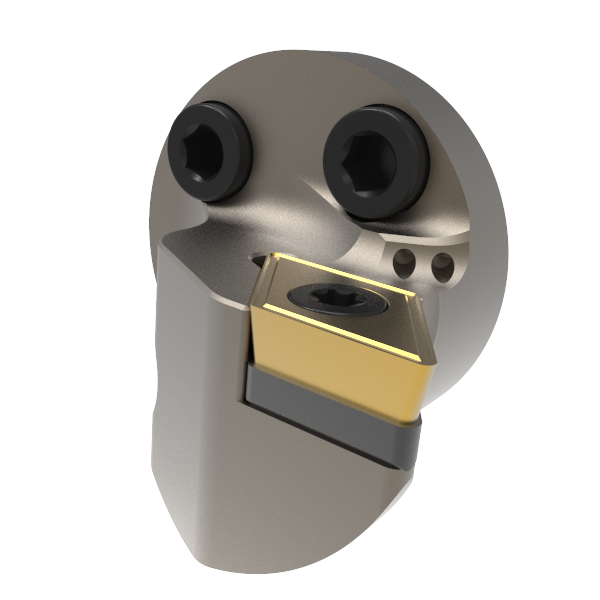

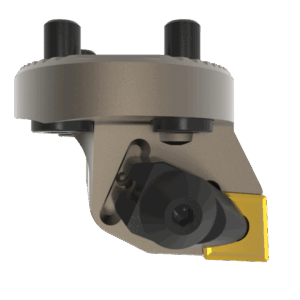

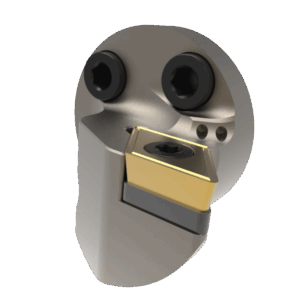

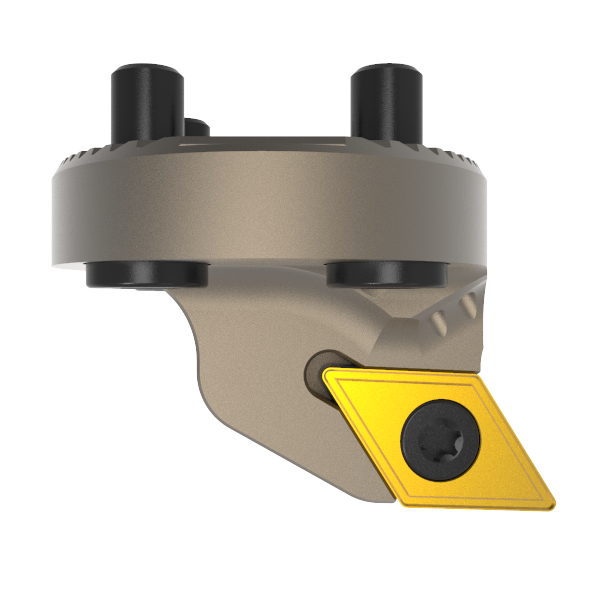

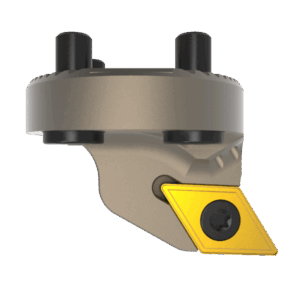

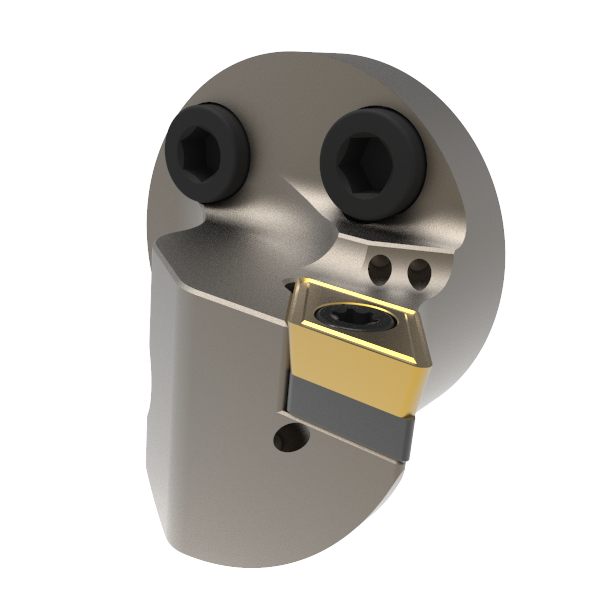

DM boring bar head with DC__11T3 or DC__1504 insert.
The F dim. is 27mm.
The smallest turning diameter on a
-40mm boring bar is 48mm
-50mm boring bar is 58mm
-60mm boring bar is 68mm
The modular Cool Tool boring bar heads with DM-40 interface are unique in their design. Like our turning tools, the heads with negative inserts are internally cooled through their clamp. In addition, the heads have a nozzle in the front that sprays from below along the cutting edge to blow away the chips and cool the cutting edge optimally.
